thermoAlternateView

Description

This plugin is an alternative to the standard Thermostat plugin widget. It is not a stand-alone thermostat and is not compatible with other thermostats.

Prerequisites and dependencies

The thermostat plugin must be configured with at least one active thermostat.

The agenda plugin is optional but is necessary to display the next setpoint time.

Configuration of the Thermostat plugin modes

The mode selector uses icons that are associated with the thermostat mode label. For an optimal display (icons), the thermostat must include modes named Day, Night, Comfort, Eco, Boost, homework, Holiday, no frost, Comfort -2, Chimney, Bath, Towel, Shower and/or Absent.

Display

Dark

Light

DarkAtmo

SimpleLight

Please change the heating, cooling and suspended colors.

SimpleDark

Please change the heating, cooling and suspended colors.

Configuration

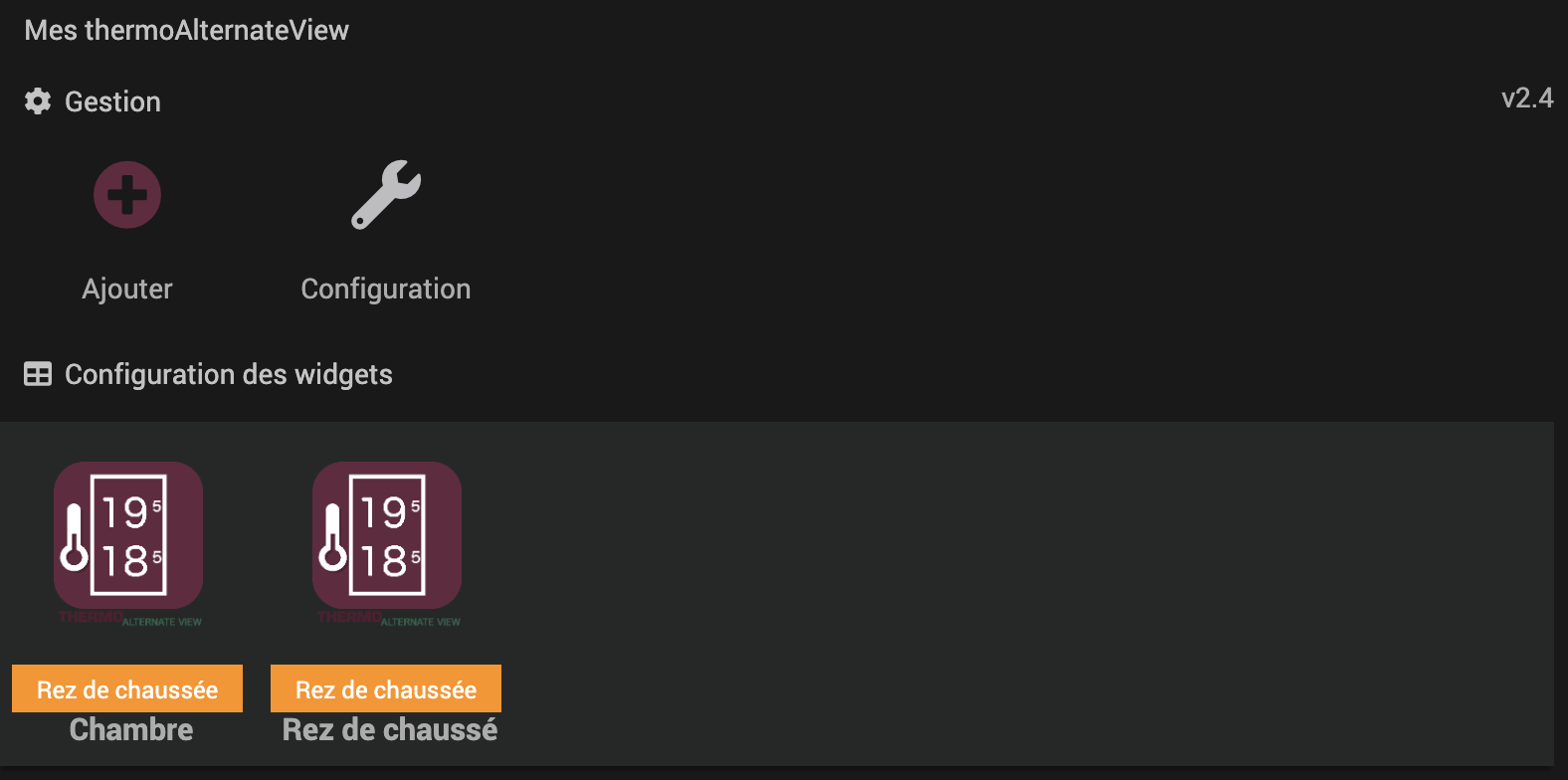

Adding a widget

From the management menu, add a widget.

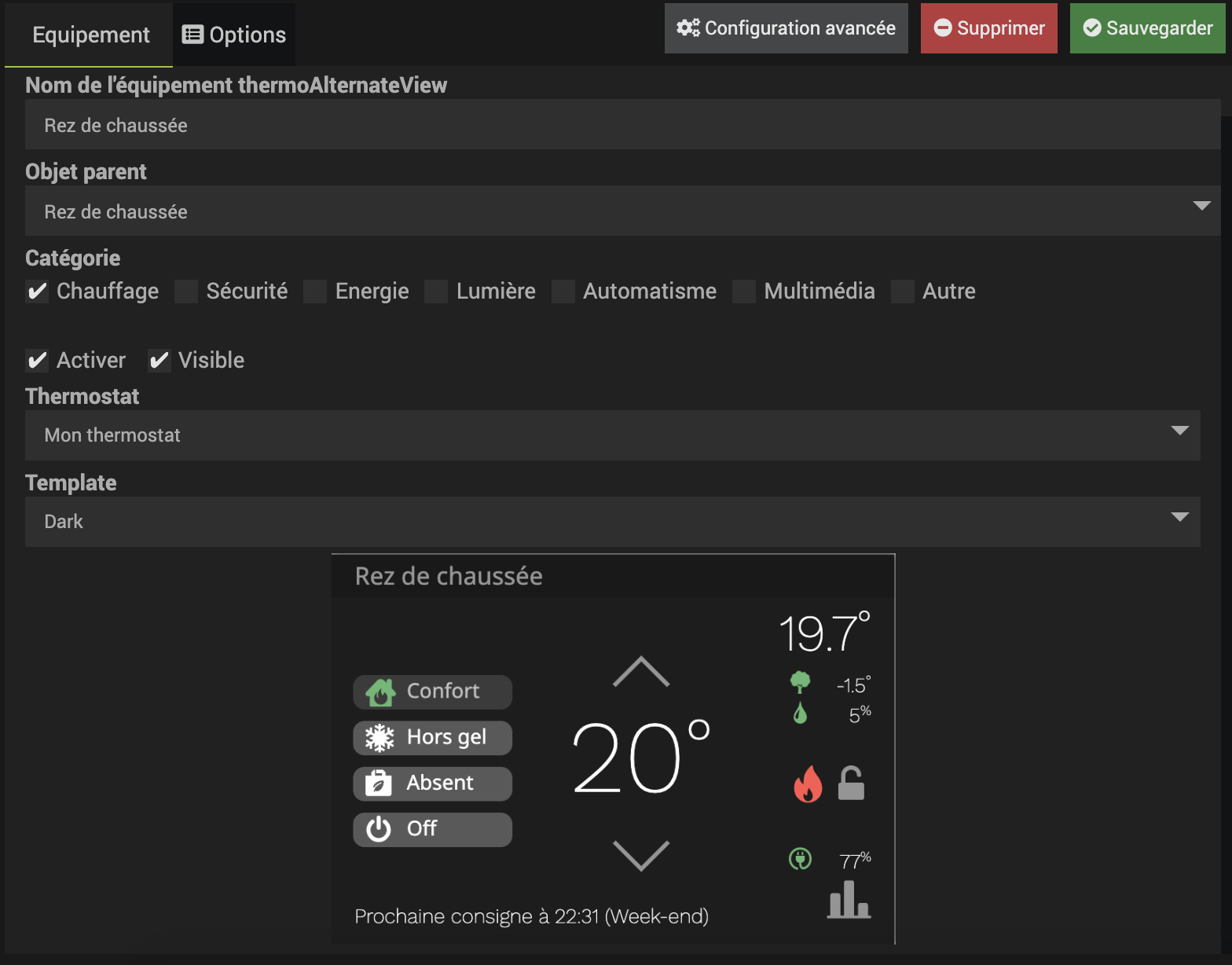

General widget configuration

• thermoAlternateView device name : This is the name displayed at the top of the widget
• Parent object : Allows you to classify the widget in Jeedom
• Category : Allows you to categorize the widget in Jeedom
• Activate/ Visible : Allows you to activate/ display the widget in Jeedom
• Thermostat : Allows you to select the thermostat whose widget will replace the rendering
• Template : Allows you to choose the visual rendering of the widget

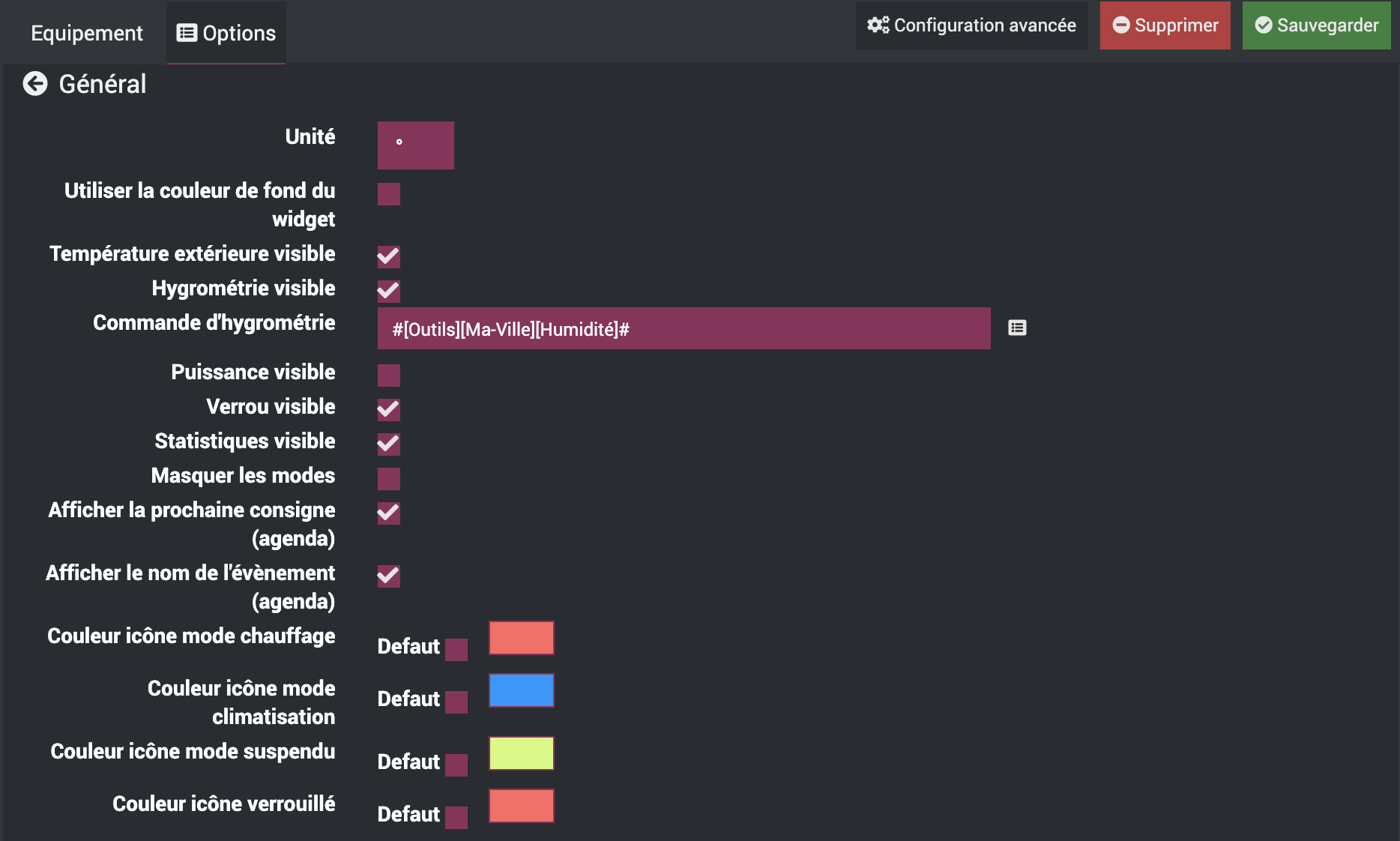

Configuring widget options

• Unit : Temperature unit displayed on the widget (default °)
• Use the background color of the widget : Allows you to use the Jeedom widget color instead of the template color
• Display external temperature : Allows you to display the outdoor temperature (configured in the thermostat)
• Display humidity : Allows you to display the humidity level
• Humidity command : Humidity command to display on the widget
• Display power : Allows you to display the power level (configured in the thermostat)
• Hide modes : Allows you not to display the mode selector switch
• Display the next heating setpoint (calendar) : Displays the time of the next (experimental) heating setpoint. This feature requires the agenda plugin.
• Display the event name (calendar) : Displays the event name. This feature requires the agenda plugin.
• Heating icon color : Allows you to change the color of the heating icon
• Cooling icon color : Allows you to change the color of the cooling icon
• Suspended icon color : Allows you to change the color of the suspended mode icon
• Lock icon color : Allows you to change the color of the lock icon

Known bugs

1. Please clear browser caching after each update
2. The refresh of the next setpoint does not always work

Changelog

V4.1 - 23/03s/2023

• Heating mode doesn’t appearing on page loading

V4.0 - 17/02/2023

• Jeedom 4.4 ready (items refresh)

V3.5 - 05/11/2021

• Add icons for other mode names: bath, towel and shower

V3.4 - 19/10/2021

• Jeedom 4.2 ready (SVG)

V3.3

• Bugfix when using thermostat in hysteresis mode: Power command is not available
• Bugfix next schedule when there is no end command

V3.2

• Bugfix when using thermostat command instead of a mode in the agenda
• New “homework” and “chimney” modes

V3.1

• Rounding humidity (bugfix)
• New “boost” mode

V3.0

• Next to the deleted humidity command from the plugin thermostat, adding it into configuration options

V2.9

• On SimpleLight/Dark : Internal temperature was not refreshed

V2.8

• Re-order modes
• On SimpleLight/Dark : Display temperature when off

V2.7

• Add objects in design mode
• Bugfixes for SimpleLight & SimpleDark

V2.6

• Bugfix humidity percent display
• Add templates SimpleLight & SimpleDark

V2.5

• Bugfixes
• SVG loading review to avoid ghosting picture

V2.4

• Jeedom v4 compliant
• php 7.3 compliant

V2.3

• WARNING : Please release the browser caching and validate each thermoAlternateView configuration before to use !
• Add new darkatmo skin
• Fix visual issues

V2.2

• Power display
• Bugfix mobile view for Dark template

V2.1

• Bugfix

V2.0

• Space optimization
• Translation into US
• Adding humidity

V1.12

• Bugfix inactive agendas
• New feature : Event name

V1.11

• Bugfix widget size at initialization
• Bugfix related to inactive agendas

V1.10

• Add documentation
• Bugfix “Category”

V1.9

• Display of statistics in dialog mode
• Adding categories (e.g. heating) in the widget configuration

V1.8

• Put a fan icon in cold mode and manage its color
• Addition of Frost Protection and Comfort -2 modes
• In the back office, image factorization for the different visuals

V1.7

• Choice of unit (°, %)
• Display the next agenda change
• Management of the “vacation” mode

V1.6

• Add the link to the temperature control history
• Color of the lock button
• Suspended mode management

V1.5

• Change the color of the icon on the market: Visual identity required by developer
• Add icons for other mode names: day and night

V1.4

• Support for advanced Widget display configuration
• Possibility to hide the modes
• Possibility to change the color of the heating flame

V1.3

• Bug fix on dark template lock button

V1.2

• Code invoicing
• Adding Dark plugin
• Adding the outside temperature

V1.1

• Bug fix
• Adding the mobile view
• Added link to statistics

V1.0

• Initial version
